MetFloor 80 — trapezoidal composite profile

MetFloor 80 MetFloor 80 — trapezoidal composite profile

Products

The ultimate in lightweight steel decking with enhanced span capabilities

metfloor 80 profile

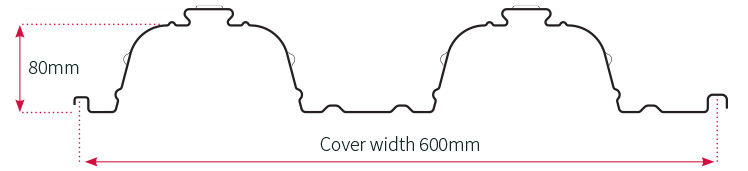

MetFloor 80 is the next step in our trapezoidal composite decking range, entering the third generation of composite slab profiles. MetFloor 80 is available in various steel grades, and measures 80mm to the shoulder.

It is the latest in our decking profile redevelopments, and offers exceptional spanning capabilities beyond MetFloor 55 & 60. With the deeper profile, concrete consumption is reduced for more sustainable material usage whilst maintaining enhanced acoustic attenuation.

MetFloor 80 is available with crushed ends, further improving acoustic and fire characteristics without the need for filler blocks at decking ends. .

For further technical information and design support please download the MetFloor brochure, or alternatively download the SCI Assessed MetFloor software.

metfloor 80 profile

Product advantages

tick icon
Gauge range
MetFloor 80 is available in 0.9mm, 1.0mm and 1.2mm steel gauges.
tick icon
Efficient
Greatest spanning capability within the CMF MetFloor decking range.
tick icon
Optimised composite action
Enhanced profile with trough ribs, shear keys and joining laps.
tick icon
Unpropped
Unpropped decking spans in excess of 5.0m can be achieved.
tick icon
Fire ratings
Complete fire design available from MetFloor software for ratings up to 2 hours.
tick icon
Crushed ends
Available with crushed ends, improving both fire and acoustic performances.
tick icon
Onsite benefits
Ideal for multi rise construction & in particular car park structures, maximising column spacing for increased capacity, combined with speed of installation. Also available with alternative coatings, for enhanced protection in exposed environments.
