MetFloor 60 — trapezoidal composite profile

MetFloor 60 MetFloor 60 — trapezoidal composite profile

Products

The ultimate in lightweight steel decking with enhanced span capabilities

metfloor 60 profile

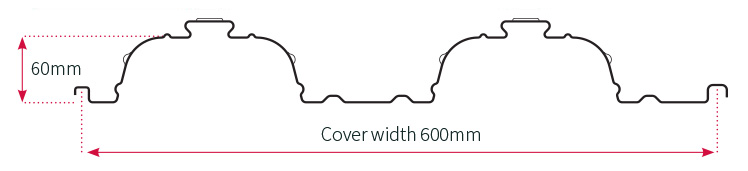

MetFloor 60 is a shallow trapezoidal composite floor deck available in a range of steel grades, and with a shoulder height of 60mm before the dovetail peak.

The highly efficient second generation MetFloor 60 profile is the result of extensive research & development. With far greater unpropped spanning capabilities and reduce concrete consumption, MetFloor 60 offers exceptional acoustic attenuation and sustainability credentials.

The 60mm profile includes trough stiffeners and joint laps formed asymmetrically to allow for interlocking and optimum stud positioning.

For further technical information and design support please download the MetFloor brochure, or alternatively download the SCI Assessed MetFloor software.

metfloor 60 profile

Product advantages

tick icon
Gauge range
MetFloor 60 is available in 0.9mm, 1.0mm and 1.2mm steel gauges.
tick icon
Efficient
Greater span capability for improved environmental sustainability and reduced costs.
tick icon
Optimised composite action
Enhanced profile with trough ribs, shear keys and joining laps.
tick icon
Unpropped
Unpropped decking spans in excess of 4.5m can be achieved.
tick icon
Fire ratings
Complete fire design available from MetFloor software for ratings up to 2 hours.
tick icon
Crushed ends
Available with crushed ends, MetFloor 60 gives exceptional fire protection.
tick icon
Onsite benefits
Ideal for multi rise construction & mezzanine floors due to speed of installation, the reduced transport requirements, and by provides working platform during construction.

Accreditations

sci member BCSA Logo CE logo
