 CSC Composite Shear Connectors

Composite Shear
Connectorscold-headed composite shear studs

Products

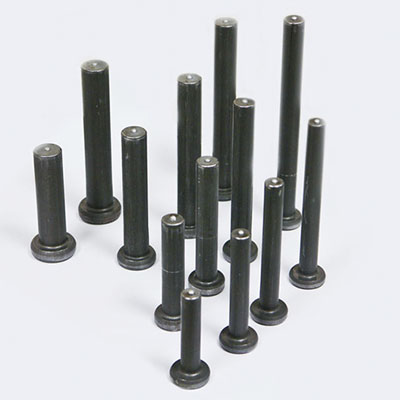

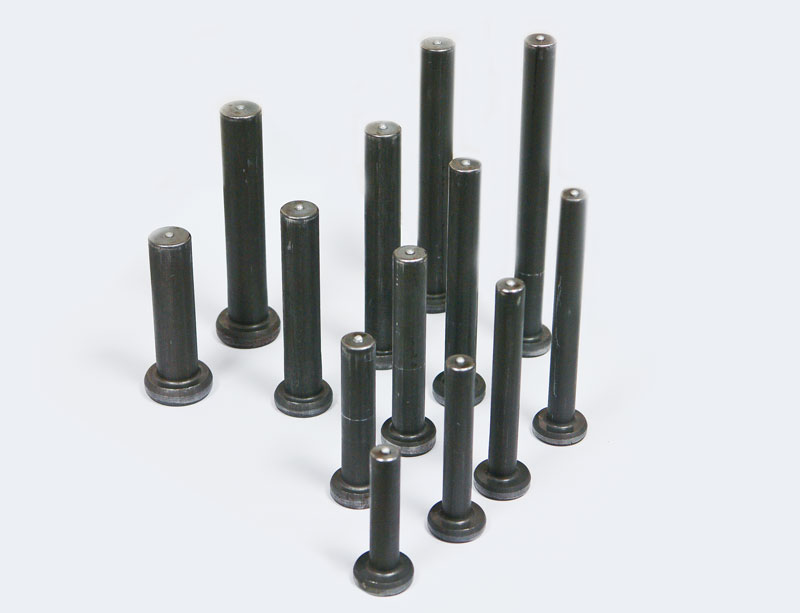

Quality shear connectors for composite beam stud welding

Providing concrete shear restraint to compositely designed steel beams, CMF’s CSC shear studs are a perfect accompaniment to the MetFloor decking range.

Our CSC shear connectors enable the installation of codified composite beam designs, whilst simultaneously fastening the profiled decking into place through the use of through-deck studwelding techniques.

For more information on all studwelding and decking installation services, please speak to our partners at Studwelders Composite Floor Decks Ltd
and Northern Steel Decking Ltd.

 CSC Composite Shear Connectors
CSC Stud Diagram CSC Stud Diagram
Diameter (mm) Length H (mm) A (mm) Yield Strength (N/mm2) Tensile Strength (N/mm2) Elongation (%)
16 Available in a variety of lengths 32 8 ≥350 ≥450 ≥15
19 Available in a variety of lengths 32 10 ≥350 ≥450 ≥15
22 Available in a variety of lengths 35 10 ≥350 ≥450 ≥15
25 Available in a variety of lengths 41 11 ≥350 ≥450 ≥15
For more information please call us on:
01495 761 080 or email

All our Studs are compliant to the following standards

tick icon
BS EN ISO 13918
tick icon
ISO/TR 15608
